RP 300 Ordinary power graphite electrode(1)

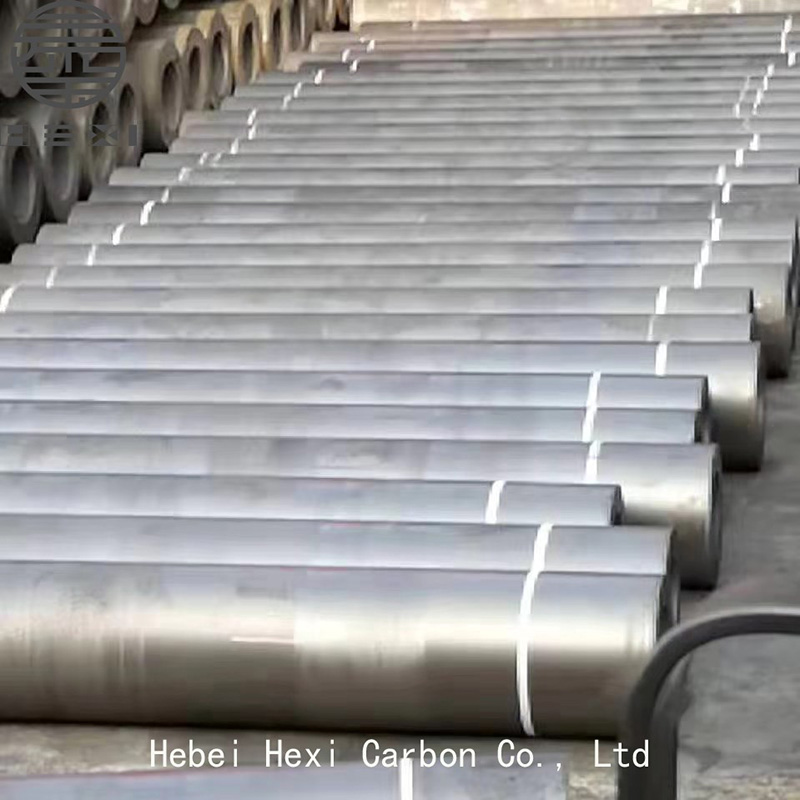

RP 300mm Graphite Electrode
RP 300mm graphite electrode is mainly made of petroleum coke and needle coke, It is designed for high power electric arc furnace steel-making.
The length could be from 1500mm to 2100mm at your option.

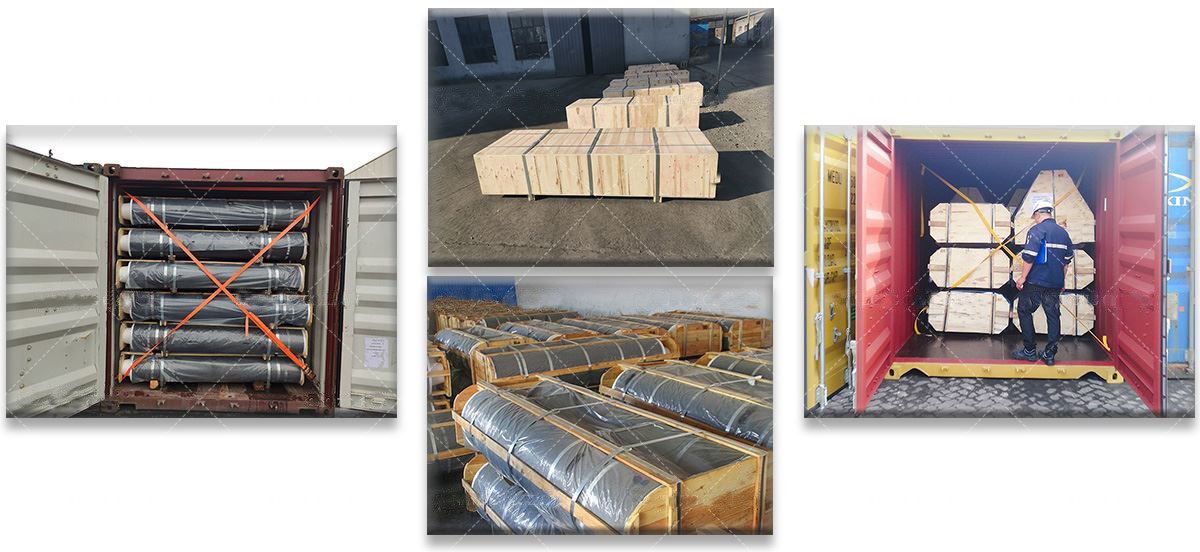

Properties and dimensionsPackage
| Comparison Technical Specification for RP Graphite Electrode 12" | ||
| Electrode | ||
| Item | Unit | Supplier Spec |
| Typical Characteristics of Pole | ||
| Nominal Diameter | mm | 300 |
| Max Diameter | mm | 307 |
| Min Diameter | mm | 302 |
| Nominal Length | mm | 1600/1800 |
| Max Length | mm | 1700/1900 |
| Min Length | mm | 1500/1700 |
| Bulk Density | g/cm3 | 1.55-1.64 |
| transverse strength | MPa | ≥9.0 |
| Young' Modulus | GPa | ≤9.3 |
| Specific Resistance | µΩm | 7.5-8.5 |
| Maximum current density | KA/cm2 | 14-18 |
| Current Carrying Capacity | A | 10000-13000 |
| (C.T.E) | 10-6℃ | ≤2.4 |
| ash content | % | ≤0.3 |
| Typical Characteristics of Nipple (4TPI/3TPI) | ||
| Bulk Density | g/cm3 | ≥1.74 |
| transverse strength | MPa | ≥16.0 |
| Young' Modulus | GPa | ≤13.0 |
| Specific Resistance | µΩm | 5.8-6.5 |
| (C.T.E) | 10-6℃ | ≤2.0 |
| ash content | % | ≤0.3 |
