500mm high power graphite electrode

Short Description:


Product Detail

Product Tags

HP and UHP series of graphite electrode are very common in practice. There is a great demand in the world market. They are fit for electrical arc furnace, laddle furnace, and submerged arc furnace.

HP 500mm graphite electrodes are very common in practice. There is a great demand in the world market. They are fit for electrical arc furnace, laddle furnace, and submerged arc furnace.

The loss of graphite electrodes in electric furnace steelmaking is very common, what are they and what is it related to? The following description is for your reference.

Physical loss

The physical loss of the electrode mainly refers to the end consumption and side consumption of the electrode, which is mainly caused by mechanical external force and electromagnetic force. It is concluded as follows

Looseness and breakage at the joint, cracking of the electrode and part of the thread of the joint falling off, which is caused by poor quality of the electrode itself,

In terms of equipment, improper electrode diameter selection, poor electrode holder, lifting and control devices;In terms of operation, large pieces of scrap collapses, hitting the electrode and poor connection between two electrodes

Chemical loss

Mainly refers to the consumption of the electrode surface, including the consumption of the electrode end and side. Generally speaking, the end consumption can reach 50% of the total electrode consumption, and the side consumption is about 40%. The larger the contact area between the electrode and the air, the greater the intensity of the oxidation reaction, and the consumption will increase accordingly.

Physical Dimension

Nominal Diameter

Actual Diameter

Nominal length and deviation



Max

Min

1800

2100

2400

2700



Standard

Short

Standard

Short

Standard

Short

Standard

Short



500

511

505

±100

-275

±125

-275

±125

-275

+200/ -150

-300

Typical Properties

Properties

Position

Unit

HP

Specific Resistance

Body

μΩm

5.8-6.6

Nipple

4.2-5.0



Bending Strengh

Body

Mpa

10.0-13.0

Nipple

18.0-22.0



Young’s Modulus

Body

Gpa

8.0-12.0

Nipple

14.0-16.0



Bulk Density

Body

g/cm3

1.62-1.66

Nipple

1.74-1.80



CTE(100-600°C)

Body

×10 -6/゚C

1.6-1.9

Nipple

1.1-1.4

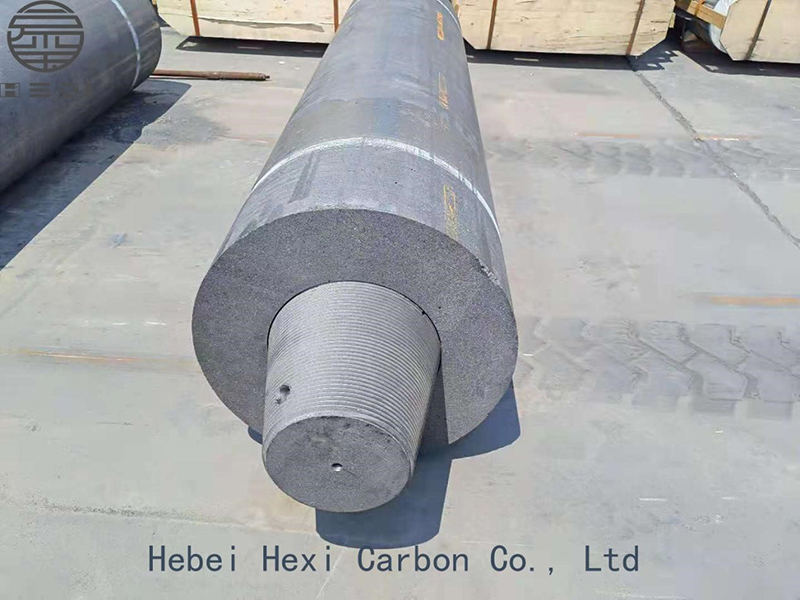

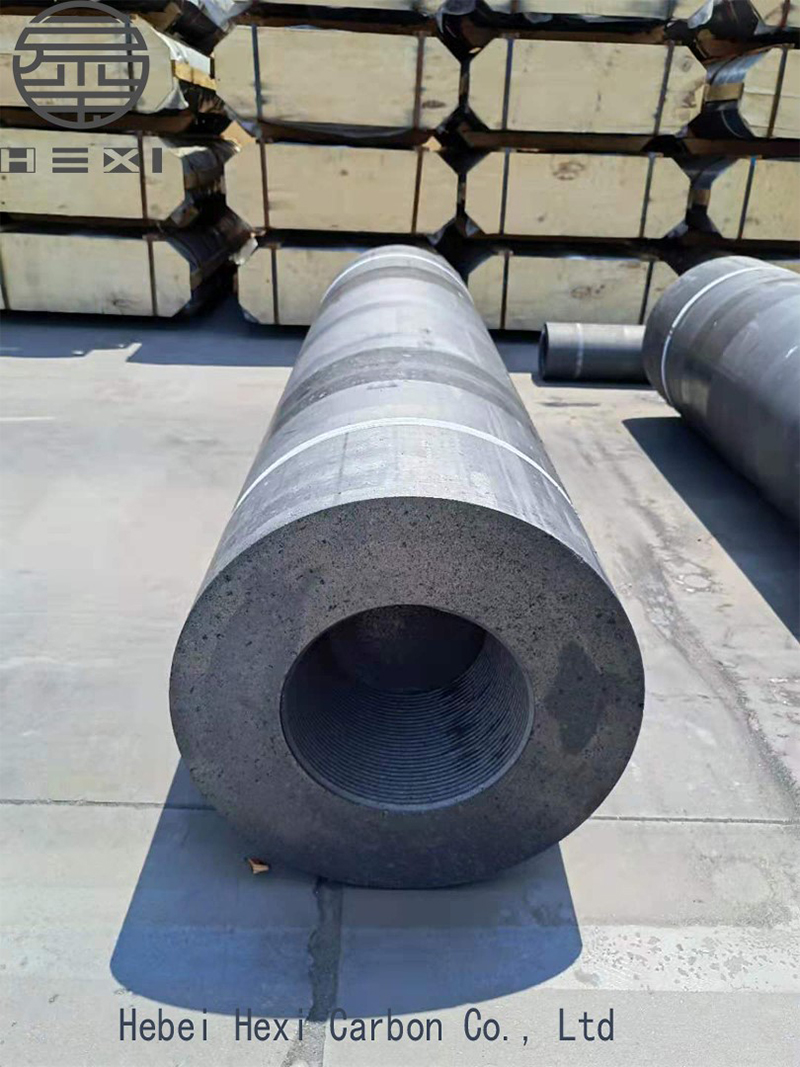

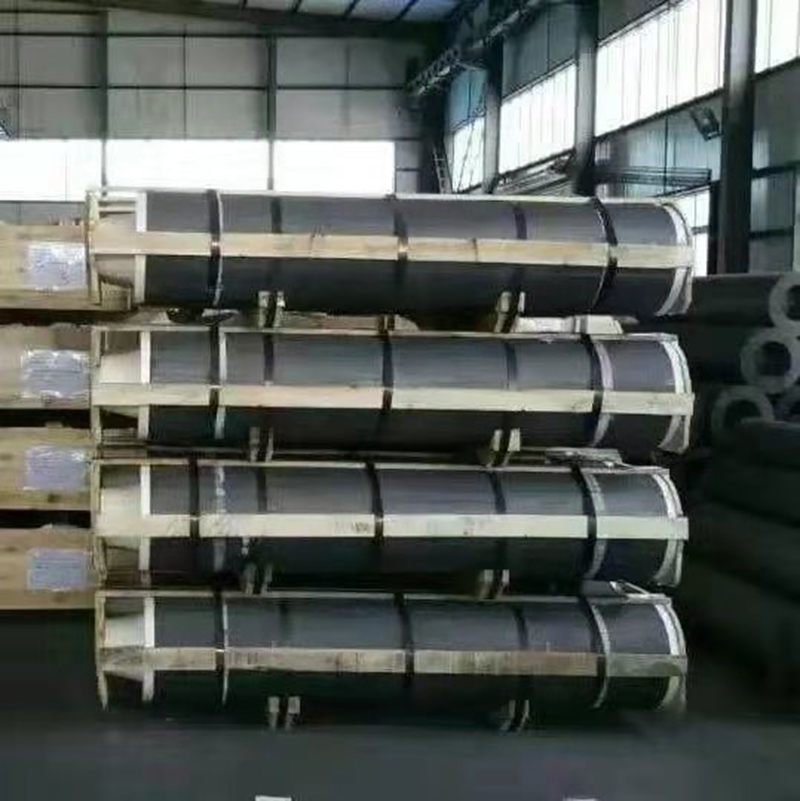

500mm high power graphite electrode2 500mm high power graphite electrode3 500mm high power graphite electrode4
