UHP 450mm Graphite Electrode

Short Description:

This is a 450mm diameter, ultra high power graphite electrode. China’s best quality graphite electrode. The graphite electrodes produced by our factory are of good quality, stable performance, low consumption, complete specifications, rapid delivery and good service.

Product Detail

Product Tags

Graphite electrodes play an important role in steelmaking industry, they are often used to melt the scrap in electric arc furnaces(abbreviated as EAF) . There are some key properties which determine the quality of electrode, what are they?

The coefficient of thermal expansion

(abbreviated as CTE) refers to a measure of the degree of expansion of a material after being heated, when the temperature increases by 1°C, it causes the expansion degree of solid material sample in a specific direction, which is called the linear expansion coefficient along that direction with unit 1×10-6/℃. Unless otherwise specified, the thermal expansion coefficient refers to the linear expansion coefficient. The CTE of the graphite electrode refers to the axial thermal expansion coefficient.

The bulk density

is the ratio of the mass of the graphite electrode to its volume, the unit is g/cm3. The larger the bulk density, the denser the electrode. Generally speaking, the larger the bulk density of the same type of electrode, the lower the electrical resistivity.

Elastic modulus

is an important aspect of mechanical properties, and it is an index to measure the elastic deformation ability of a material. Its unit is Gpa. Simply speaking, the greater the elastic modulus, the more brittle the material, and the smaller the elastic modulus, the softer the material.

The level of elastic modulus plays a comprehensive role in the use of electrodes. The higher the volume density of the product, the denser the elastic modulus is, but the poorer the product's thermal shock resistance is, and the easier it is to generate cracks.

Physical Dimension

Comparison Technical Specification for UHP Graphite Electrode 18"
Item Unit Supplier Spec
Typical Characteristics of Pole
Nominal Diameter mm 450
Max Diameter mm 460
Min Diameter mm 454
Nominal Length mm 1800-2400
Max Length mm 1900-2500
Min Length mm 1700-2300
Bulk Density g/cm3 1.68-1.72
transverse strength MPa ≥12.0
Young' Modulus GPa ≤13.0
Specific Resistance µΩm 4.5-5.6
Maximum current density KA/cm2 19-27
Current Carrying Capacity A 32000-45000
(C.T.E) 10-6℃ ≤1.2
ash content % ≤0.2
Typical Characteristics of Nipple (4TPI)
Bulk Density g/cm3 1.78-1.84
transverse strength MPa ≥22.0
Young' Modulus GPa ≤18.0
Specific Resistance µΩm 3.4~3.8
(C.T.E) 10-6℃ ≤1.0
ash content % ≤0.2

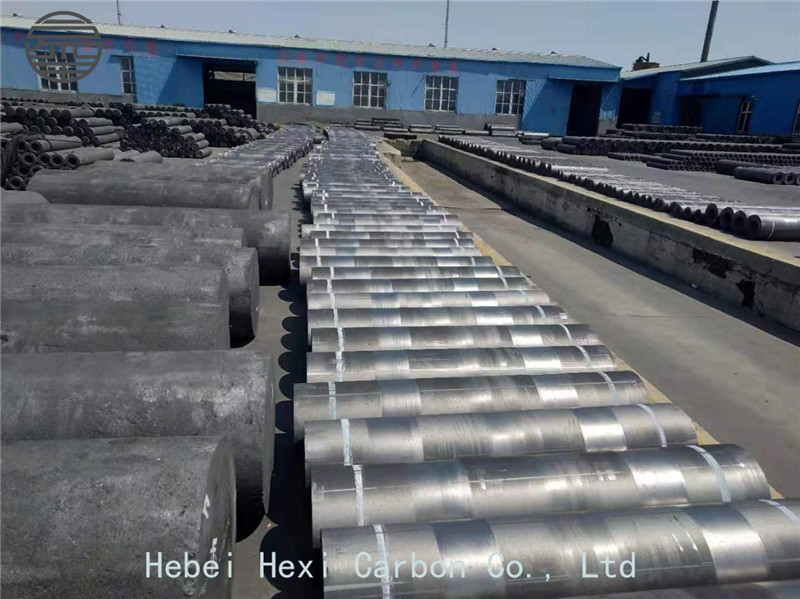

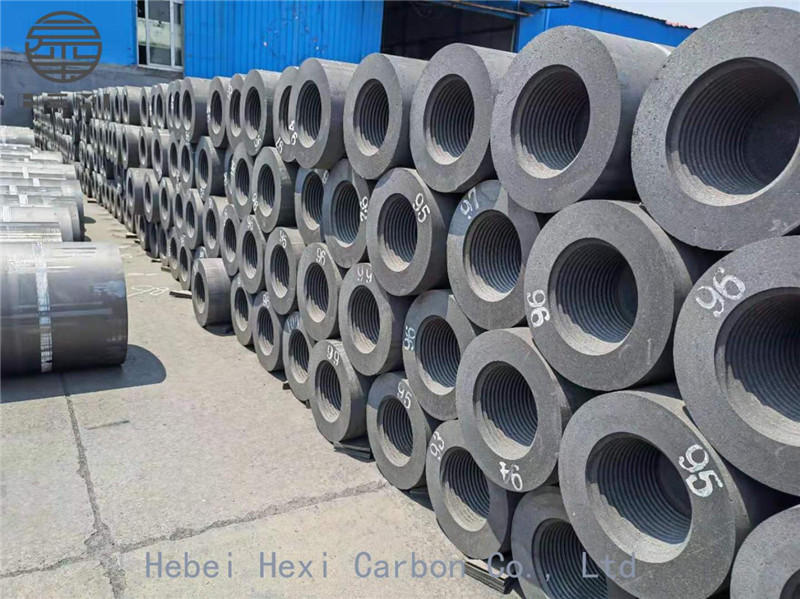

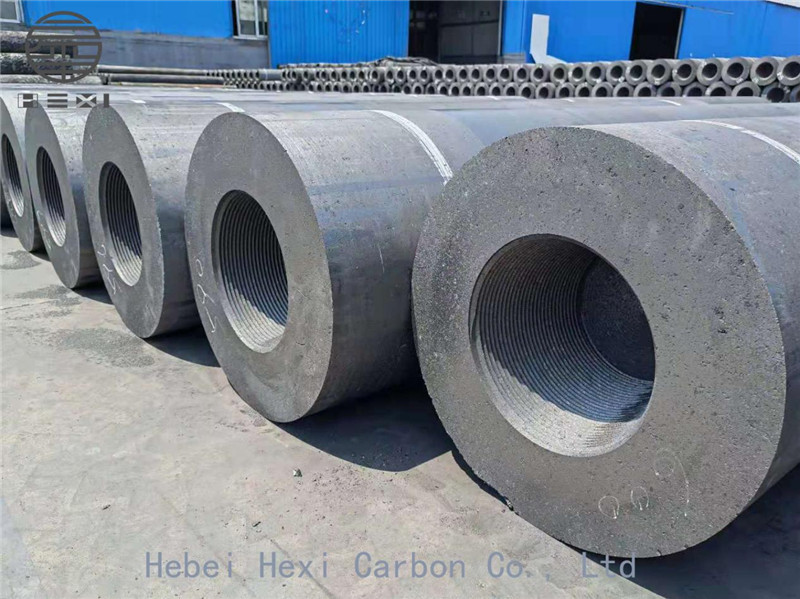

UHP 450mm Graphite Electrode04 UHP 450mm Graphite Electrode02 UHP 450mm Graphite Electrode03
