HP 300mm Graphite Electrode
HP 300mm graphite electrode is mainly made of petroleum coke and needle coke, It is capable of carrying the current density 18-25A/cm2. It is designed for high power electric arc furnace steel-making.
HP 300mm graphite electrode is mainly made of petroleum coke and needle coke, It is capable of carrying the current density 18-25A/cm2. It is designed for high power electric arc furnace steel-making.The length could be from 1500mm to 2100mm at your option.
Properties and dimensions
| Comparison Technical Specification for HP Graphite Electrode 12" | ||
| Electrode | ||
| Item | Unit | Supplier Spec |
| Typical Characteristics of Pole | ||
| Nominal Diameter | mm | 300 |
| Max Diameter | mm | 307 |
| Min Diameter | mm | 302 |
| Nominal Length | mm | 1600/1800 |
| Max Length | mm | 1700/1900 |
| Min Length | mm | 1500/1700 |
| Bulk Density | g/cm3 | 1.68-1.73 |
| transverse strength | MPa | ≥11.0 |
| Young' Modulus | GPa | ≤12.0 |
| Specific Resistance | µΩm | 5.2-6.5 |
| Maximum current density | KA/cm2 | 17-24 |
| Current Carrying Capacity | A | 13000-17500 |
| (C.T.E) | 10-6℃ | ≤2.0 |
| ash content | % | ≤0.2 |
| Typical Characteristics of Nipple (4TPI/3TPI) | ||
| Bulk Density | g/cm3 | 1.78-1.83 |
| transverse strength | MPa | ≥20.0 |
| Young' Modulus | GPa | ≤15.0 |
| Specific Resistance | µΩm | 3.5-4.5 |
| (C.T.E) | 10-6℃ | ≤1.8 |
| ash content | % | ≤0.2 |

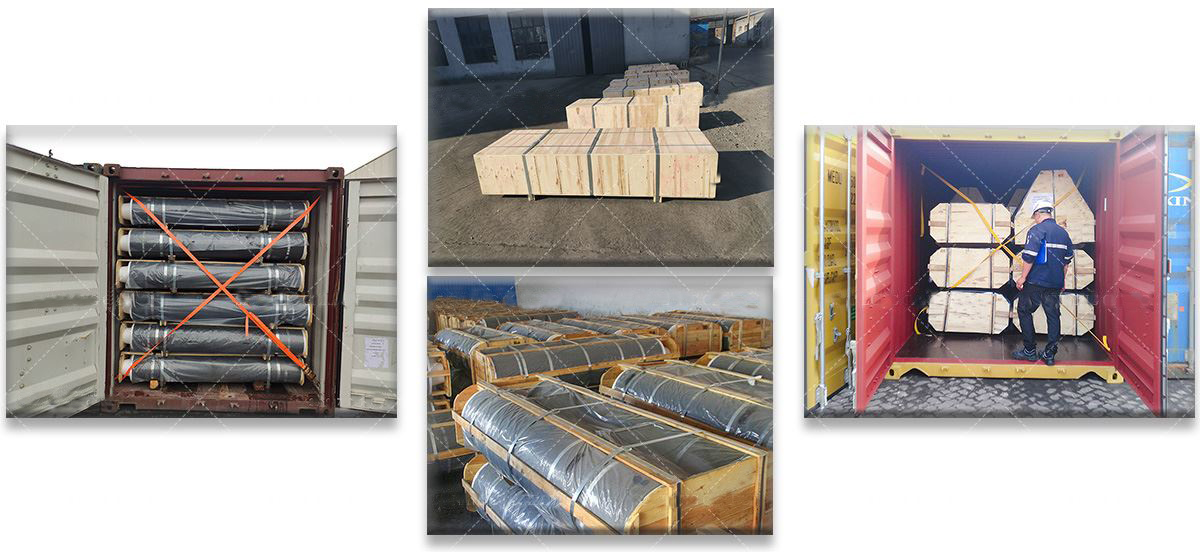

Package
