550mm high power graphite electrode

Short Description:

This is a 550mm diameter,  High power graphite electrode. China’s best quality graphite electrode.The graphite electrodes produced by our factory are of good quality, stable performance, low consumption, complete specifications, rapid delivery and good service.

Product Detail

Product Tags

HP graphite electrode is mainly made of petroleum coke and needle coke, It is capable of carrying the current density 18-25A/cm2. It is designed for high power electric arc furnace steel-making.

Modern steelmaking methods mainly include converter steelmaking and electric furnace steelmaking. The most fundamental difference between the electric furnace steelmaking method and the converter steelmaking method is that the electric furnace steelmaking method uses electrical energy as a heat source, and the electric arc furnace steelmaking method is the most commonly used.

EAF steelmaking is based on the electric arc generated by the discharge between the electrode and the charge, which converts electrical energy into thermal energy in the arc light, and uses the direct action of radiation and arc to heat and melt the metal and slag to smelt steel and alloys of various compositions.

Typical Properties

Comparison Technical Specification for HP Graphite Electrode 22"
Item Unit Supplier Spec
Typical Characteristics of Pole
Nominal Diameter mm 550
Max Diameter mm 562
Min Diameter mm 556
Nominal Length mm 1800-2400
Max Length mm 1900-2500
Min Length mm 1700-2300
Bulk Density g/cm3 1.68-1.72
transverse strength MPa ≥10.0
Young' Modulus GPa ≤12.0
Specific Resistance µΩm 5.2-6.5
Maximum current density KA/cm2 14-22
Current Carrying Capacity A 34000-53000
(C.T.E) 10-6℃ ≤2.0
ash content % ≤0.2
Typical Characteristics of Nipple (4TPI/3TPI)
Bulk Density g/cm3 1.78-1.83
transverse strength MPa ≥22.0
Young' Modulus GPa ≤15.0
Specific Resistance µΩm 3.2-4.3
(C.T.E) 10-6℃ ≤1.8
ash content % ≤0.2

Graphite electrode composition

1.Petroleum coke is black and porous, carbon is the main composition, and the ash content is very low, generally below 0.5%.

Petroleum coke can be divided into two types of raw coke and calcined coke according to the heat treatment temperature. The former contains a large amount of volatile matter and has low mechanical strength. The calcined coke is obtained by calcining the raw coke.

Petroleum coke can be divided into high sulfur coke (with sulfur content above 1.5%), medium sulfur coke (with sulfur content 0.5%-1.5%), and low sulfur coke (with sulfur content below 0.5%) according to sulfur level. Graphite electrodes and other artificial graphite products are generally produced using low sulfur coke.

2.Needle coke is a kind of high-quality coke with obvious fiber texture, particularly low thermal expansion coefficient and easy graphitization. Therefore, needle coke is a key raw material for manufacturing high-power or ultra-high-power graphite electrodes featured with low resistivity, small thermal expansion coefficient, and good thermal shock resistance.

3.Coal pitch is one of the main products of coal tar after deep processing. It is a mixture of multiple hydrocarbons. Coal pitch is used as a binder and impregnating material. Its performance has a great influence on the quality of graphite electrodes.

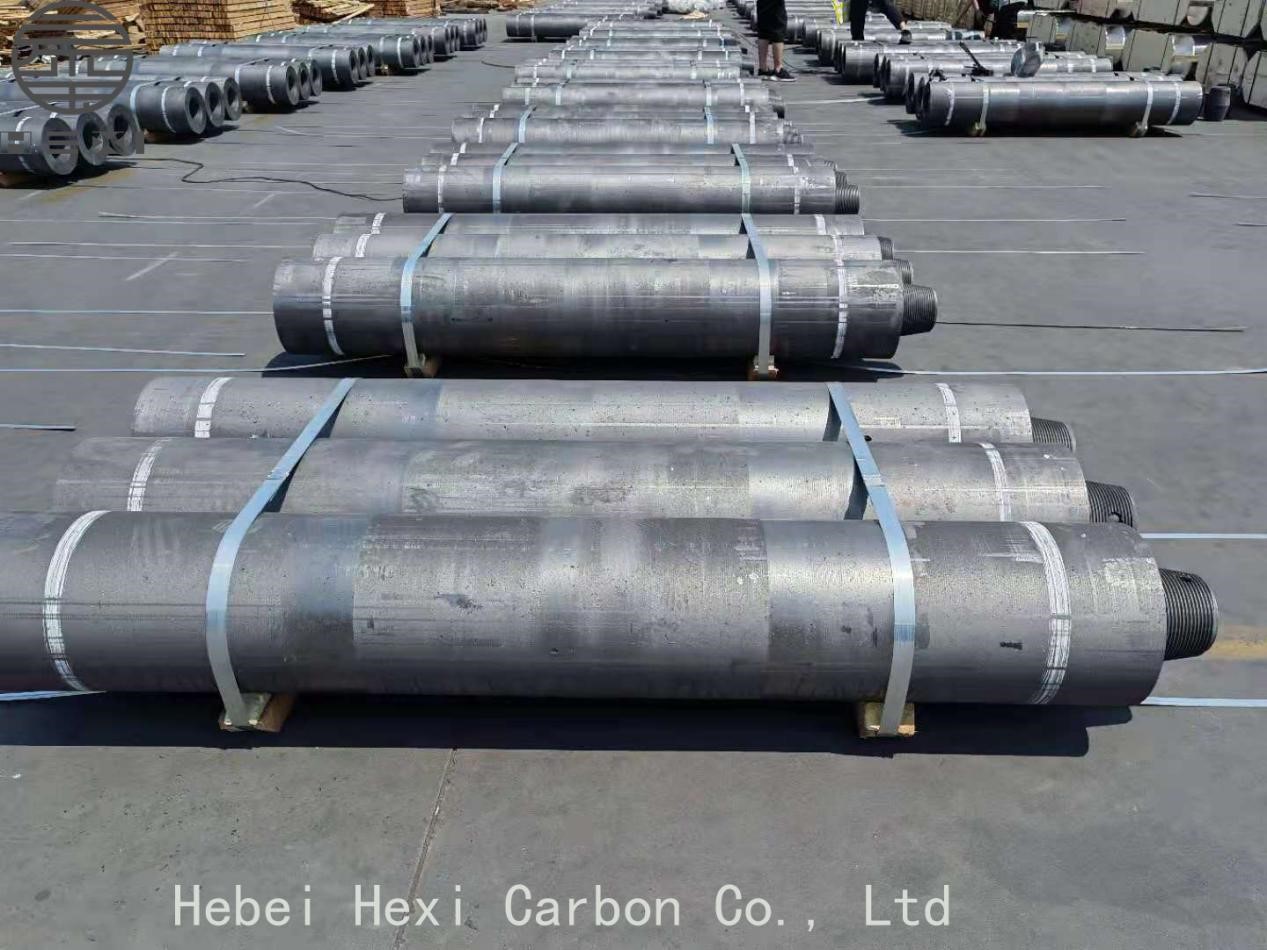

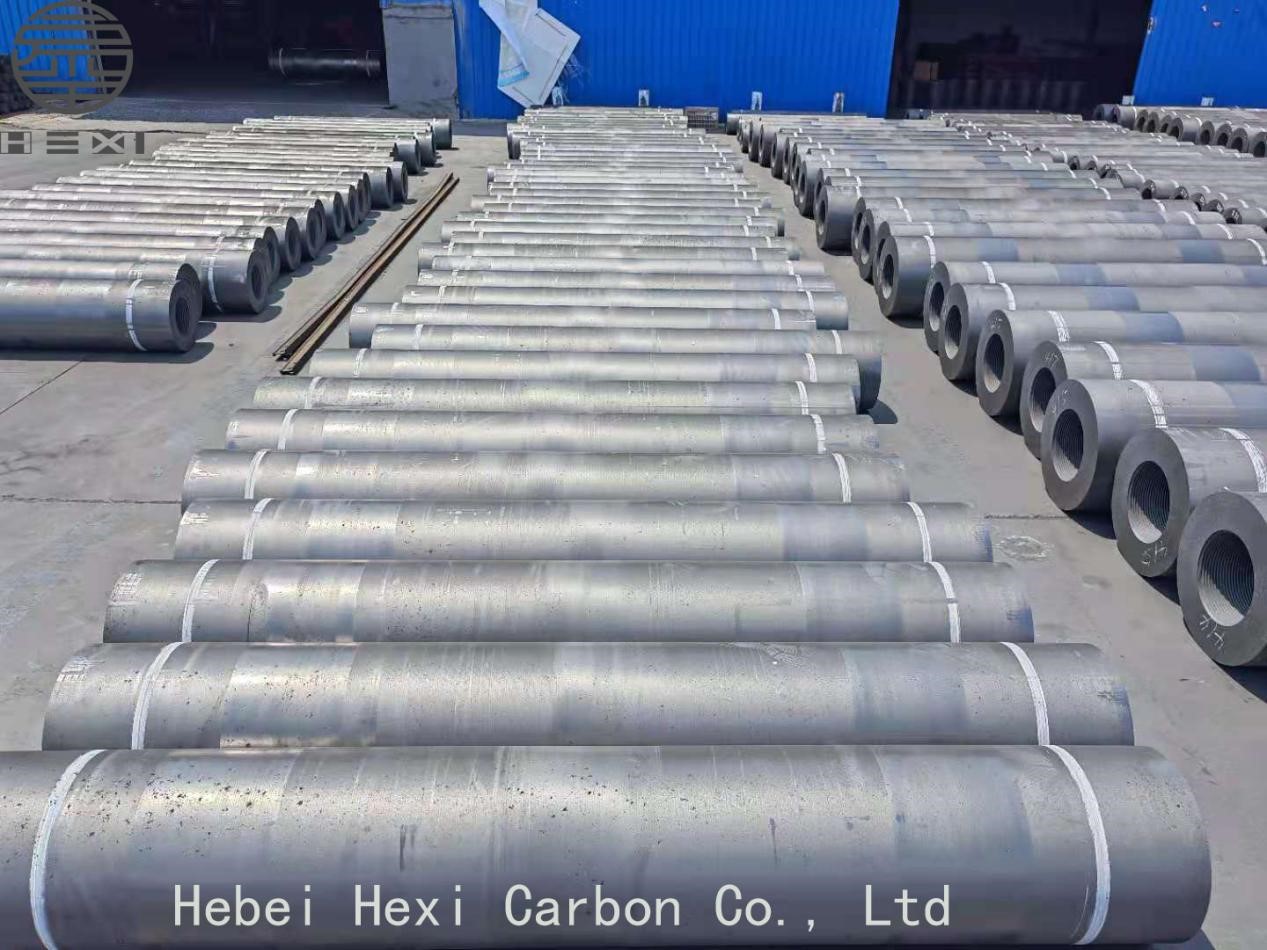

550mm high power graphite electrode2 550mm high power graphite electrode3
